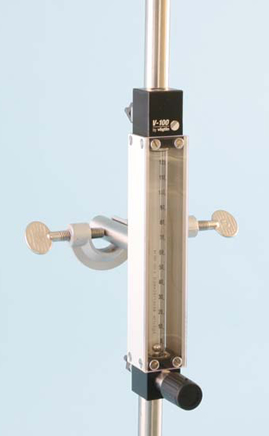

V100 Suspension Flow Meter For Encapsulator Var J1
The V100 is a classic suspension flow meter for gases and liquids. It has been continuously developed in active co-operation with users to an x-time proved and reliable measuring device. Please note in particular the multiple variations, the vigorous construction and the wide range of options available.
Precision Regulating Valve
The Flow Meter is available in two different materials:• Nisco article N° PE-00655 stainless steel
|
Technical Data
Scale range: | 10:1 |
Accuracy in % of end value: | ±2% |
Length of glass gauge: | 140 mm |
Length of scale: | 120 mm |
Floating body: | spherical shape |
Pressure resistance: | 16 bar |
Maximum temperature: | 100 °C |
Maximum pressure loss: | 30 mbar |
G1/4” with hose nipple inlet/outlet: | 4 mm |
Flow rate 0-8 Nl/min at: | 0.5 barg |
Please use the Info-Form to ask for the adequate encapsulation system for your specific applications.
