Flow control unit with Thermal Mass Flow Meter with LCD display
(for the VAR D2Go)


(and predecessor models)
Nisco article No. A 01209

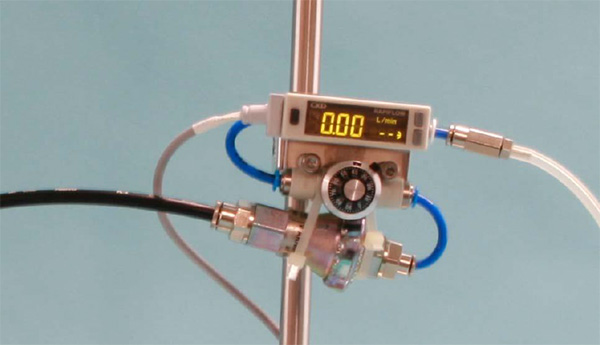

Complete flow unit mounted on a holder with 12mm bar and double socket to fix it on a lab
support with 12mm bar. The flow control unit consists of:

Pressure limiter
Inlet pressurized oil free air 5-18barg
Outlet 1.5barg

Pressure limiter
Needle Valve range 0..10L/min with potentiometer type manual drive.

Thermal mass flow meter:

Type:
FSM2-PAF200-H041
Measuring range: 1-20 Nl/min
Repeatability: +-1% of FS or less
Display resolution: 0.01 l/min
Medium: Air
Temperature: 0..50°C
Primary pressure: 3.0 bar a
Post pressure: 1.5 bar a
Connection: G1/4“ female thread
Power supply: 24VDC

Power Supply unit:

Type:
FPPS
5-7.5WP//FPPS 24-12WP
Input: 110-240V/AC. 50/60Hz,
Output: 24VDC, max. 500mA, max. 12W
Cable length 1.8 meter
4 Plugs UK, EU, US, AU



Inlet Air hose
inner diameter 4mm outer diameter 6mm (outside calibrated)
On the picture a black PE hose has been used.

Outgoing hose
Hose ID2mm and hose Adapter for the connection to the air accelerator of the single nozzle laminar jet-break-up unit.

Please use the Info-Form to ask for the adequate encapsulation system for your specific applications.
