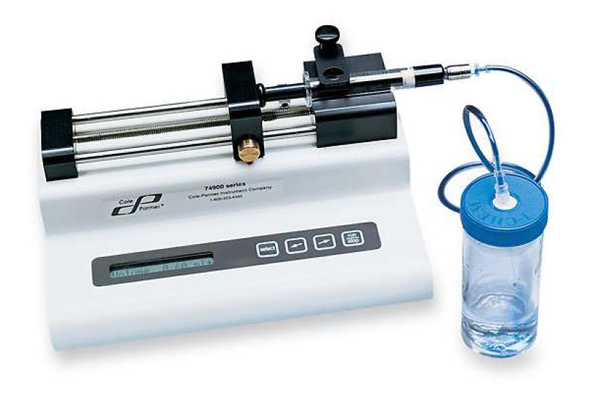

Cole-Parmer Single-Syringe Infusion Pump

Part No. 74900-00

The Cole-Parmer Single-Syringe Infusion Pump is a simple, accurate cost effective syringe pump designed to hold glass or plastic syringes, of any make, from 10 microliter to 60 millilitre.
Setup and pump operation of this pump is extremely simple. A menu, displayed on an alphanumeric LCD "prompts" the operator to make the necessary selections using the keypad for choice of features and numerical entries.

The pump can be ordered together with a new unit, or it can be ordered and mounted at a later stage, as and when required.

Suitable applications
The pump is suitable for producing a steady flow with most fluids at ambient temperature. It is designed for a batch size up to 60 ml. The unit is suitable to run sterile batches, for example, for living cells, when using sterile syringes and tubing.
The pump is not recommended for fluids containing fast sedimentary particles.

Advantage
The pump is designed for applications with low flow rate, has a robust construction and long period of use.

Nisco applications
The pump is used for VARJ1, VARJ30 and VARV1 units.

Pump specifications
Flow rate range
0.1μl/hr (10 μl syringe) to 426 ml/hr (60 ml syringe)

Syringe size
10 microliter to 60 millilitre

Accuracy
+/-0.5%

Linear force average
9 kg (20 lbs)

Voltage operating range
US model 100-120V~, 50/60Hz
CE model 200-240V~,50/60Hz

Weight
4.5 lb (2 Kg)

Dimensions
9x6x5 inch (23x15.25x13 cm)

Environmental conditions
Operating temperature range 4°C to 40°C (40°F to 104°F)

Humidity
20% to 80% RH, non-condensing

Please use the Info-Form to ask for the adequate encapsulation system for your specific applications.

Please note: You need Acrobat reader to display the following PDF - Files.

pdf Download PDF-File Cole-Parmer Single-Syringe Infusion Pump
