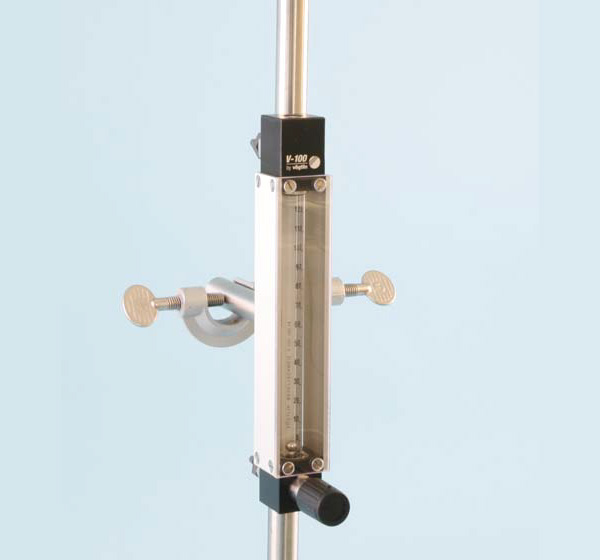

V100 Suspension Flow Meter for Encapsulator VAR J1

The V100 is a classic suspension flow meter for gases and liquids. It has been continuously
developed in active co-operation with users to an x-time proved and reliable measuring device.
Please note in particular the multiple variations, the vigorous construction and the wide range of options available.

Construction features

Solid construction of special selected materials
Guaranteed stability of floating bodies
Measuring range 10:1 standard
Burned in scales with contrast background
Simple replacing of measuring glass
Precision regulation valve tuned to measuring range
Bar for the fixation on a laboratory support

Technical Data

Scale range	10:1
Accuracy in % of end value	±2%
Length of glass gauge	140 mm
Length of scale	120 mm
Floating body	spherical shape
Pressure resistance	16 bar
Maximum pressure loss	30 mbar
G1/4” with hose nipple inlet/outlet	4 mm
Flow rate	0-8 Nl/min at 0.5 barg

Precision Regulating Valve

The patented precision regulating valve has been developed for regulation of small flowing rates of gases and liquids. This valve allows an extremely accurate adjustment and a continuous flow of media. The gliding needle with conical grinding is moving in a nozzle bore and with the spiral rotation changing the opening diameter linear. The choke cross section of a particular spiral position is reproducible; the hysteresis of the opening characteristic curve is eliminated by means of a spring.
