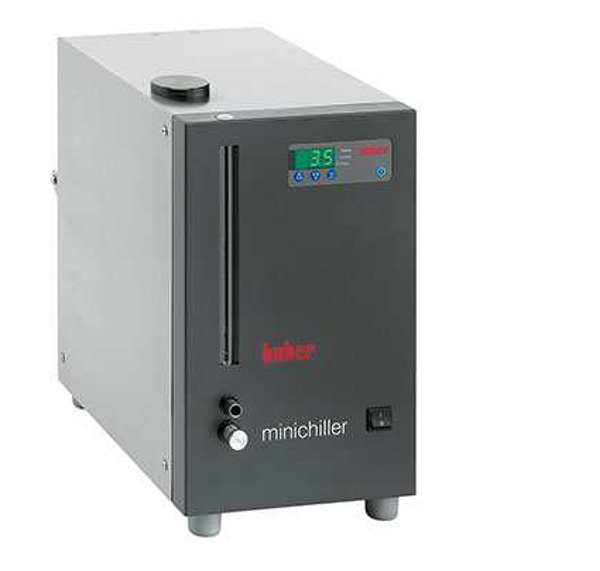

Circulation Huber Mini Chiller for Thermal Units
The VARD2Go Thermal units are optionally equipped with the Mini Chiller Unit, which provides the cooling of the hardening solution.
The chiller is connected to the 3L beaker with double jacket hose connectors, made from borosilicate.
MPC-Controller:
Modern and easy to use microprocessor controller with a large temperature displayLimited to essential functions only:
- Large temperature display. LED indicators for pump, cooling and heating
- Simple operation using only 3 keys
General information and temperature controller:
| Temperature range | -20...40 (80*)°C | ||||
| Temperature stability | ±0,5°C | ||||
| Temperature display | LED-Display | ||||
| Display resolution | 0,1 C | ||||
| Alarm message | optical, acoustical | ||||
| Controller | MPC | ||||
| Safety class | I / NFL | ||||
| Dimensions | (W x D x H) 225 x 360 x 380mm | ||||
| Weight | 23kg | ||||
| Heating / cooling capacity | |||||
| Cooling capacity | |||||
| °C | 15 | 0 | -10 | -20 | |
| kW | 0,3 | 0.2 | 0.14 | 0.07 | |
| Cooling machine | air-cooled | ||||
| Refrigerant | R290 (0,04 kg) | ||||
| Circulation pump | |||||
| Pressure pump | max. 14l/min;0,25bar | ||||
| Suction pump | max. 17l/min;0,18bar | ||||
| Pump connection | M16x1AG male | ||||
| Operating data | |||||
| Permissible ambient temp. | 5...40°C | ||||
| Filling volume min. | 1,4Litres | ||||
| Volume of expansion | 2,6Litres | ||||
| Power supply | 230V 1~ 50/60Hz | ||||
| Current max. | 2,8A | ||||
| * allowed return temperature | 80°C | ||||
Please use the Info-Form to ask for the adequate encapsulation system for your specific applications.
