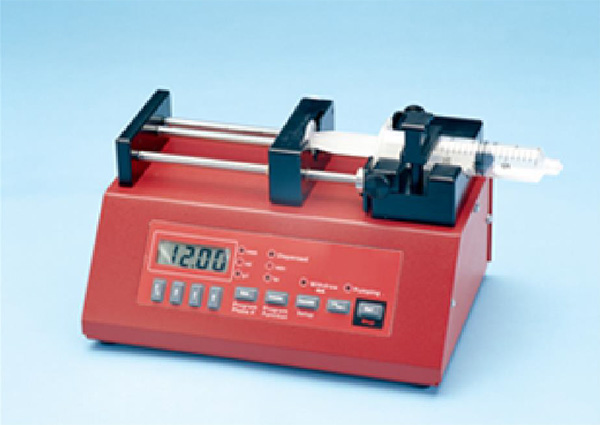

ALADDIN AL1000-220 Programmable Syringe Pump


Nisco Article N° PE –01341

The Aladdin AL1000-220 Programmable Syringe Pump is designed as a low cost, single syringe infusion pump capable of low to moderate back pressures.
The pump can hold syringes up to 60ml and will accept syringes from Becton Dickinson, Monoject, Terumo, and Air-Tite.

Suitable applications

The pump is suitable for producing a steady flow with most fluids at ambient temperature.
It is designed for a batch size up to 60 ml. The unit is suitable to run sterile batches, for
example, for living cells, when using sterile syringes and tubing.
The pump is not recommended for fluids containing fast sedimentary particles.

Advantage: Vast range of flow-rates.

Nisco Applications

The unit is used for VARJ1 and VARJ30 single nozzle vibrating VARD2Go units with the nozzle size up to 500μm as well as for electrostatic unit VARV1.

Pump specifications

Flow rate range: 0.73μ/hr (B-D 1ml syringe) to maximum 1699ml/hr (B-D 60ml syringe)
Syringe size: up to 60ml
Syringe inside diameter range: 0.10 to 50.00mm
Accuracy: Dispensing accuracy of +/-1%.
Linear force (Max): 15.87kg (35 lbs) at minimum speed, 8.16kg (18lbs) at maximum speed
Power supply type: Unregulated linear external wall adapter, country and power source specific.
Weight: 1.63kg (3.6lbs)
Dimensions: 22.9 x 14.6 x 11.4 cm (8.75 x 5.75 x 4.5 in.) (L x D x H)

Dual pumping action

Two Aladdin pumps when daisy-chained are more efficient and affordable than any competitor's dual syringe models. Two Aladdins (AL-2000) will perform as a dual infusion/
withdrawal pump, a double pump for infusing at different rates, a push/pull pump with one infusing and one withdrawing at the same or different rates, two independent
pumps, or a master/slave pump. One Aladdin can even control the second for continuous pumping with optional check valve set.

Please use the Info-Form to ask for the adequate encapsulation system for your specific applications.

Please note: You need Acrobat reader to display the following PDF - Files.

pdf Download ALADDIN AL1000-220 Programmable Syringe Pump as PDF-file
