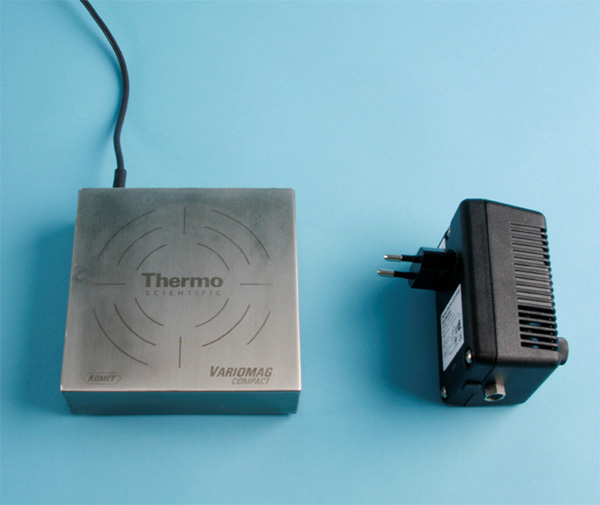

Magnetic Stirrer VARIOMAG COMPACT for Pressurized Feeding Systems
(VARGravity2Go & VARJ1)

The inductive drives of Thermo Scientific VARIOMAG® magnetic stirrers operate without any moving parts such as motors, belts, or mechanical bearings, making them 100% wear and maintenance-free.

The remote-controlled VARIOMAG COM-PACT magnetic stirrers offer simple opera-tion in a compact size. This stirrer has ex-traordinary mechanical, physical and chem-ical resistances. Fully immersible, it can be submersed in water at temperatures to 50°C and is heat resistant in ovens and incubators up to 56°C.

Magnetic Stirrer Compact Specifications

Stirring Points:
Stirring Power: 5W
Housing Material: stainless steel
Operating Temp: -10°C up to +56°C at 100% relative humidity
Net Weight: 1kg(2.2lbs)
Exterior Dimensions: 120x120x35mm (WxDxH)
Inches: (4.7x4.7x1.4)
Voltage: 100 - 240V 50/60Hz

Benefits include

· Hermetically sealed in a resistant stainless steel housing, thus suitable for use under conditions of high ambient humidity or in aggressive me-dia; impermeable to microorganisms
· Can be cleaned under running water
· Units for operation at +200°C in air or +95°C in water are optionally available
· Includes TELEMODUL or TELE-MODUL 20 C control unit (stirring power 7 or 20 watts) either 110V or 230V AC.


Please use the Info-Form to ask for the adequate encapsulation system for your specific applications.

Please note: You need Acrobat reader to display the following PDF - Files.

Download Magnetic Stirrer VARIOMAG COMPACT for Pressurized Feeding Systems as PDF file
