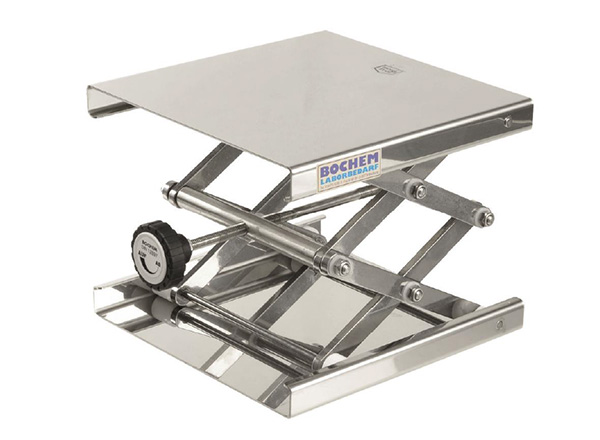

Support for Height Adjustment
PE – 01162

The stainless support is used with all Nisco configurations for height adjustment of flasks and pumps included in the feeding systems.



Support Construction:


- Improved scissor technology with reduced tolerances
- Ergonomic knob, rounded and user friendly
- Scissor-construction made of 18/10-stainless steel



Properties:


- All models are manufactured according to DIN 12897.
- The operating load differs between the maximal dynamic operating load (Kg max. dyn.) and the maximal static operating load (Kg max. stat.) of the lab jack. These norms are also according to DIN 12897.
- Smaller models up to 240x240mm have a simple adjusting wheel, which can be operated easily by hand.



Dimensions:


Length: 240 mm
Width: 250 mm
Max. Height: 275 mm
Min. Height: 60 mm
Max. Weight: 7 Kg

Please use the Info-Form to ask for the adequate encapsulation system for your specific applications.

Please note: You need Acrobat reader to display the following PDF - Files.

Download Support for Height Adjustment PE – 01162 as PDF file
