Coaxial Nozzles for Electromagnetic Single Nozzle Encapsulation Units

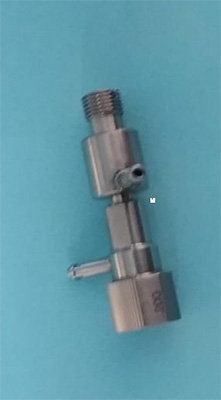

The coaxial nozzle is supplied with a direct flow adapter (A-01124) to connect the nozzles with the various sizes. You need only one adapter for the work with different coaxial nozzles.

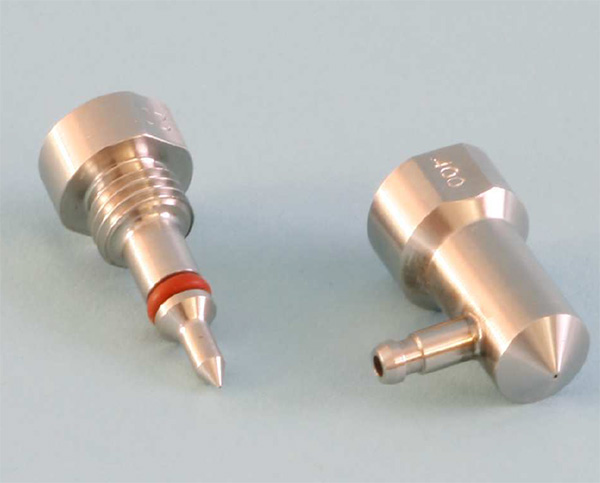

The adapter and the nozzles are made in titanium. The coaxial nozzle is supplied as a pair of required inner and outer nozzle sizes. The outer nozzle has a polished sapphire.

The nozzles are available with material certificates for qualification purpose. If the encapsulation of water in wax or fat is needed, special equipment with the heated head is available on request. The nozzles can be used with the following Nisco encapsulation units: · VARDBasic2Go · VARD2Go · VARB (a special adaptation piece is required) Inner Diameter inner nozzle (id), inner Diameter outer nozzle (ID) in mm Nisco Part No. id 0.10 with ID 0.20 A-01541 id 0.15 with ID 0.30 A-01542 id 0.20 with ID 0.40 A-01543 id 0.25 with ID 0.50 A-01544 id 0.30 with ID 0.60 A-01545 id 0.35 with ID 0.70 A-01546 id 0.40 with ID 0.80 A-01547 id 0.45 with ID 0.90 A-01548 id 0.50 with ID 1.00 A-01549

The sunflower oil droplets encapsulated in 2% alginate (Sigma, low viscosity).

Please use the Info-Form to ask for the adequate encapsulation system for your specific applications.

Please note: You need Acrobat reader to display the following PDF - Files.

Download 210420_Nozzles_coaxial_E-37 as PDF-File
