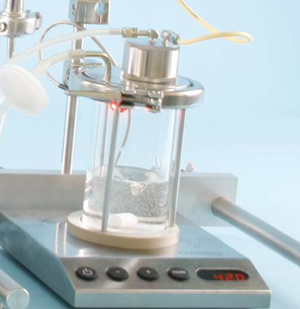

Sterile Autoclavable Container for Nisco Encapsulation unit VAR J30


The sterile container for the Nisco J30 is designed for encapsulation with the aerodynamic nozzle. It is the ideal tool if you have to produce beads on high level pharmaceutical or medical standard. It is delivered with the required material certificates to ease the validation of your process.

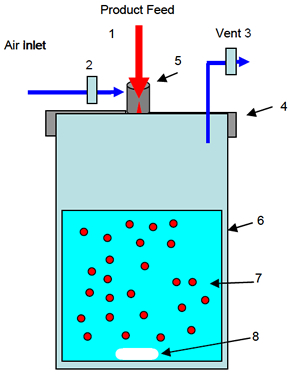

Schematic picture



Legend:

1 Product feed 5 Sterile aerodynamic nozzle
2 Air inlet from pressure
container with sterile 0.2μm filter
6 Autoclavable glass vessel (process is visible from outside)
3 Vent to hold the vessel in pressureless
condition with sterile filter 0.2μm
7 Hardening solution with beads
4 Clamp cover 8 Agitation element for stirring

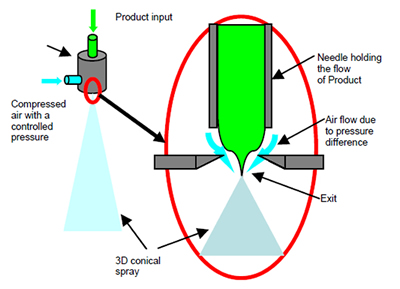

Working Principle: Aerodynamic Jetting

working principle


The product enters through a central needle. The exit orifice, which is centrally in line with the axis of the needle, has been counter sunk externally. The counter sunk leads to the aero dynamical effect that the jet has the smaller diameter when it is passing the orifice than the needle. The needle is enclosed in a pressure chamber with an exit through the orifice. The size of the drops is determined by the product flow rate and the pressure inside the chamber.

Materials in contact with product

All materials are supplied with material certificates.
Stainless steel parts: 1.4435 or equivalent
Electrode: titanium
Isolation parts: PEEK
Nozzles: 1.4435 or equivalent
Gaskets: EPDM or Silicone depending on application
Glass cylinder: borosilicate
O-Rings: EPDM or Silicone depending on application
Hoses: silicone or polypropylene

Materials without contact to product

Stainless steel parts: 1.4301 or equivalent



Please use the Info-Form to ask for the adequate encapsulation system for your specific applications.

Please note: You need Acrobat reader to display the following PDF - Files.

pdf Download Sterile Autoclavable Container for Nisco Encapsulation unit VAR J30 as PDF file (50KB)
